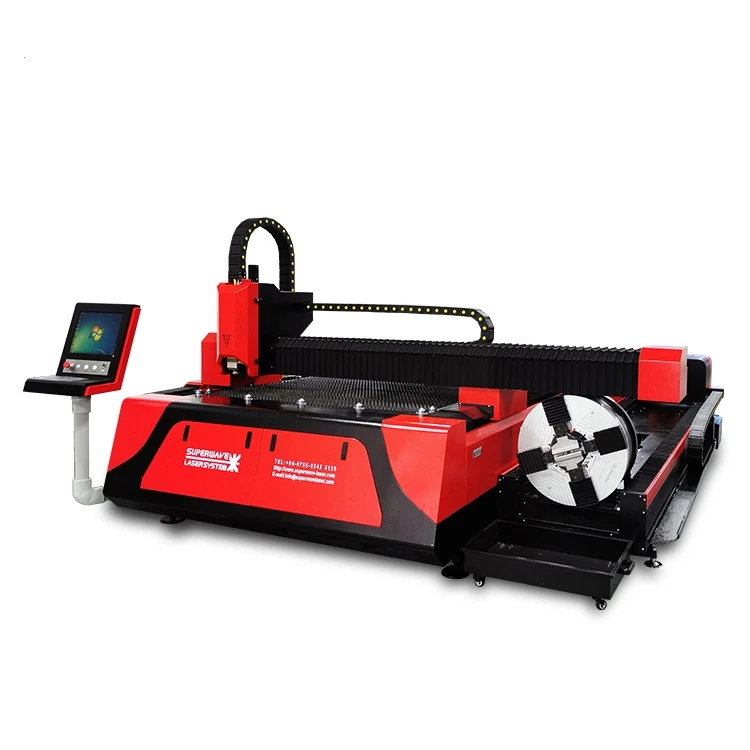

Ib Lub Tshuab nrog Ob Txoj Haujlwm
Daim ntawv & raj laser txiav tshuab tuaj yeem txiav ob daim ntawv thiab raj hlau, hloov cov ntawv laser txiav tshuab thiab raj laser txiav tshuab tag nrho. Rau cov neeg siv, nws yuav nthuav dav lawv cov kev txiav cov ntaub ntawv thiab txhim kho lawv cov kev sib tw ua lag luam.Raws li daim ntawv & raj 2-hauv-1 tshuab, ntawv & raj laser txiav tshuab tuaj yeem pab cov neeg siv kom txuag tau cov nqi ntawm kev yuav khoom los ntawm 40%. Nws muaj ib lub platform thiab tsim qauv yooj yim, nrog 50% tsawg dua qhov chaw nyob thiab kev siv lub rooj cob qhia siab.
Nta
◆ Sheet hlau ua
Txais yuav cov khoom lag luam saum toj kawg nkaus fiber ntau laser qhov chaw nrog kev ua haujlwm ruaj khov, txo cov ntawv pov tseg, thiab txhim kho lub peev xwm ntau lawm.
◆ Tube hlau ua
Tsis siv neeg pneumatic chuck, zoo sealing thiab txav cov yam ntxwv, ruaj khov clamping.
◆ Tsis siv neeg blanking muaj nuj nqi
Nws nruab nrog lub tshuab blanking thiab tailing tsis siv neeg ua haujlwm, tsis muaj phau ntawv blanking.
◆ High txiav zoo, precision, ceev thiab eciency
Cov kab hluav taws xob zoo heev, kev tsim khoom ntau dua thiab kev ua haujlwm zoo, Kev ruaj ntseg siab: SW-FLC txais cov khoom lag luam zoo tshaj plaws fiber ntau nrog kev ua haujlwm ruaj khov, kev pabcuam lub neej ntawm cov khoom tseem ceeb yog txog 100, 000 teev.
◆ Cov hneev taw me me, tus nqi qis, ceev rov qab los ntawm kev nqis peev
Lub kaw lus tsis siv neeg thauj khoom tag nrho yog tswj hwm los ntawm lub kaw lus meej, tsis siv neeg ua tiav qhov chaw thau khoom, faib, thiab xa cov txheej txheem, txuag nqi zog thiab txhim kho kev tsim khoom.
Qhov zoo
◆ Zoo txiav zoo, siab precision, ceev ceev, thiab zoo tshaj plaws efficiency.
◆ Tus nqi qis, xa rov qab sai ntawm kev nqis peev.
◆ Custom-tsim txiav software system:
- Txhawb Auto CAD software DXF cov duab duab, Bysoft7 software PART graphics format.
- Ua kom yooj yim rau kev ua haujlwm thiab ua haujlwm rau kev txiav tag nrho sai dua thiab yooj yim dua.
- Ntau Slexible, txawm tias cov neeg siv tsis paub dhau los tuaj yeem yooj yim paub txog kev txiav.
- Kev ruaj ntseg thiab ruaj khov, ntau yam nta kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm cov txheej txheem txiav.
Daim ntawv thov
Haum rau stainless hlau, carbon hlau, hlau alloy, silicon steel, galvanized hlau, npib tsib xee titanium alloy, npib tsib xee chromium alloy, titanium alloy thiab lwm yam ntaub ntawv hlau.
Dav siv dav hauv aerospace, tsheb, nkoj, machinery manufacturing, elevator tsim, advertising, khoom siv hauv tsev, Stainless hlau project, khoom kho mob, kho vajtse, kho kom zoo nkauj, hlau ua cov kev pab cuam thiab lwm yam kev lag luam industries.
Txiav cov qauv
Daim ntawv hnub
|
Qauv |
SWB-FLC |
|
Laser kho qhov muag |
|
|
Laser Source |
Fiber Laser |
|
Laser wavelength |
1070nm ua |
|
Laser zog |
1000W/1500W/2000W/3000W/4000W/6000W |
|
Kev ua haujlwm hom |
CW thiab Modulated |
|
Electro-optical conversion efficiency |
25% mus rau 30% |
|
Laser beam zoo M2 |
＜1.1 |
|
Txias |
Dej Txias |
|
Ua haujlwm kub |
5-40 degree |
|
Cov av noo |
5%-85% |
|
Laser twj tso kua mis diode lub neej |
100, 000 teev |
|
Fiber tso zis connector |
QBH |
|
Tshuab |
|
|
Dimensions (LWH) |
Customized |
|
Cov kav dej ntev |
3m (yeem) |
|
Siv tau txiav ntau yam |
3000 × 1500mm (Yeem) |
|
Txiav raug |
0.02 hli |
|
Incision Aperture |
0 1-0.2 hli |
|
Workbench positioning raug |
X: ± {{0}}.01mm/m; Y: ± 0.03mm/m |
|
Workbench Rov ua dua qhov tseeb |
Tsawg dua los yog sib npaug rau ±0.02mm/m |
|
Qhov hnyav tag nrho |
Nyob ib ncig ntawm 4.5 TON |
|
Kev siv hluav taws xob |
AC380V ± 5%, 50Hz / 60Hz, |
